Imaging

Products » BPL » Imaging

Mobile DR Solutions

BPL MRAD 5.0 DR

  • 5 KW Output with a 110KHz high frequency X-ray generator
  • 1.8mm2 Focal spot for superior image quality and reduced radiation
    exposure for clinicians and patients
  • User friendly control panel with an alphanumeric LCD display & 216 Anatomical programming
  • 14X17” Wireless Flat Panel detector with a 12.3’ Touch console
    provides clinicians access to high quality digital radiography images
  • Adjustable Collimator with high luminescence lamp for easier &
    faster positioning
  • PACS connectivity using LAN/Wi-Fi aids in easy access and transfer of images

BPL MRAD 3.6 DR

  • 3.5 KW Output with a 110KHz high frequency X-ray generator
  • 1.5mm2 Focal spot for superior image quality and reduced radiation
    exposure for clinicians and patients
  • User friendly control panel with an alphanumeric LCD display & 155 Anatomical programming
  • 14X17” Wireless Flat Panel detector with a 12.3’ Touch console
    provides clinicians access to high quality digital radiography images
  • Adjustable Collimator with high luminescence lamp for easier & faster
    positioning
  • PACS connectivity using LAN/Wi-Fi aids in easy access and transfer of images

BPL MRAD 3.5 DR

  • 3.5 KW Output with a 40KHz imported high frequency X-ray generator
  • 1.5mm2 Focal spot for superior image quality and reduced radiation
    exposure for clinicians and patients
  • User friendly control panel with an alphanumeric LCD display & 155 Anatomical programming
  • 14X17” Wireless Flat Panel detector with a 12.3’ Touch console
    provides clinicians access to high quality digital radiography images
  • Adjustable Collimator with high luminescence lamp for easier & faster
    positioning
  • PACS connectivity using LAN/Wi-Fi aids in easy access and transfer of images

BPL EVS 3643WP/4343WP

  • Available in 14″x17″ / 17*17″ wireless detector size
  • Excellent image quality using FOCUS CsI
  • Lossless AED/AWD
  • 140 micron Pixel pitch
  • 16 bit detector
  • OLED Display
  • TRUVIEW® ART Advanced image Reconstruction Technology

Fixed DR Solutions

BPL HRAD 32/40*/50**
Series DR-2 Prime

  • 32/40*/50** KW HF X-Ray Generator
  • 40–125 KV Range, 400/500*/650**mA
  • Anatomical Programming (216) & Self-Diagnostics (Error Indications)
  • Manual LED Collimator
  • Rotating Anode X-Ray Tube
  • Floor Mount Tube Stand with electromagnetic locking mechanism
  • 4-way Floating Top DR Table
  • Vertical DR Bucky wall mount with Electromagnetic locking mechanism
  • Desktop workstation with monitor (Optional)
  • 6-way floating top DR table (Optional)

BPL HRAD 32/40*/50**
Series DR-1 Prime

  • 32 / 40*/50** KW HF X-Ray Generator
  • 40–125 KV Range, 400/500*/650** mA
  • Rotating Anode X-Ray Tube
  • 17”x17” CsI Tethered detector housed in cabinet
  • Floor Mount DR-1 Prime Stand
  • Electromagnetic Locking Mechanism
  • Detector with tilting facility ( 0° – 90 °)
  • Anatomical Programming (216) & Self-Diagnostics (Error Indications)
  • Manual LED Collimator
  • Mobile Radiography Table
  • Desktop workstation with monitor (Optional)
  • 4-way floating top mobile table (Optional)

BPL HRAD 300/500*
Series DR-1 Prime

  • 24 / 40* KW LF X-Ray Generator
  • 40 – 125 KV Range, 300 / 500* mA
  • Rotating Anode X-Ray Tube
  • 17”x17” CsI Tethered detector housed in cabinet
  • Floor Mount DR-1 Prime Stand
  • Electromagnetic Locking Mechanism
  • Detector with tilting facility ( 0° – 90 °)
  • Anatomical Programming (216) & Self-Diagnostics (Error Indications)
  • Manual LED Collimator
  • Mobile Radiography Table
  • Desktop workstation with monitor (Optional)
  • 4-way floating top mobile table (Optional)

Fixed X-ray Solutions

BPL HRAD 32/40*/50**

  • 125KV, 400mA/500mA*/650** mA High Frequency Fixed X-Ray
  • High Frequency, 32KW/40KW*/50KW** output X-Ray Generator
  • 216 Anatomical Programming feature for precise selection of KV &
    mAs based on patient’s anatomy
  • Compatible Tables: BPL Plano (horizontal bucky tble); BPL Multio
    (5-position manual tilt table); BPL Floato (horizontal bulky table with floating top); BPL Moto (motorised table)
  • Suitable for any clinical application and ideal for govt. hospital, medical institutions, corporate hospitals & diagnostic centers.

BPL XRAD 500/ 300

  • 125KV, 500mA/300mA line frequency fixed X-Ray
  • Alphanumeric LCD display with 4 X 20 characters for easy viewing
  • Precise selection of KV (1KVp / Step)
  • 155 anatomical programming features for precise selection of KV &
    mAs based on patient’s anatomy
  • Compatible tables: BPL Plano (horizontal Bucky table); BPL Multio
    (5-position manual tilt table); BPL Floato (horizontal Bulky table with floating top)

BPL XRAD 100

  • Powered by an advanced user friendly operator console with soft touch control of all radiographic parameters
  • Uses State-of-the-art Microcontroller to control various functions and features
  • Equipped with an alphanumeric LCD Display
  • X-Rad 100 has User Configurable Anatomical Programming
  • 155 Anatomical Programs are present with pre-Set Keys for instant selection
  • Self-Diagnostic Program
  • X-Ray Counter with Password protection
  • Memory to retain last selected factors
  • 40 to 100 kVp in steps of 2 kVp only

Mobile X-ray Solutions

BPL MRAD 5.0

  • 110kHz ultra high frequency technology ensures that only useful dose is produced over the entire duration of the exposure while suppressing the skin dose.
  • 5 kw output X-Ray generator.
  • 40kv-110kv, 100mA
  • Stationary anode X-Ray tube with 1.8mm2 smaller focal spot.
  • Ergonomically design product with easy manoeuvrability & more storage space

BPL MRAD 3.6 Plus

  • 110kHz ultra high frequency technology ensures that only useful dose is produced over the entire duration of the exposure while suppressing the skin dose.
  • 3.5 kw output X-Ray generator.
  • 40kv-110kv, 70mA
  • Stationary anode X-Ray tube with 1.5mm2 smaller focal spot.
  • Ergonomically design product with easy manoeuvrability & more storage space.

BPL MRAD 100

  • 100KV, 100mA Line frequency mobile X-Ray
  • Alphanumeric LCD display with 4 X 20 characters for easy viewing
  • Precise selection of KV (2KVp / Step)
  • 155 anatomical programming feature for precise selection of KV &
    mAs based on patient’s anatomy
  • Ergonomically design product with easy manoeuvrability & more
    storage space

Surgical Imaging

BPL C-RAY Prime

BPL C-RAY Prime

  • Italian High Frequency X-Ray Monoblock 3.5KW for proven quality & reliability
  • Stationary Anode X-ray Tube Head with efficient Heat Management
  • Reduced Leakage radiation thereby providing protection for the patient and the operator
  • 19″ LED/Medical grade* Full Touch Coloured Control Panel with tilting and rotation facility

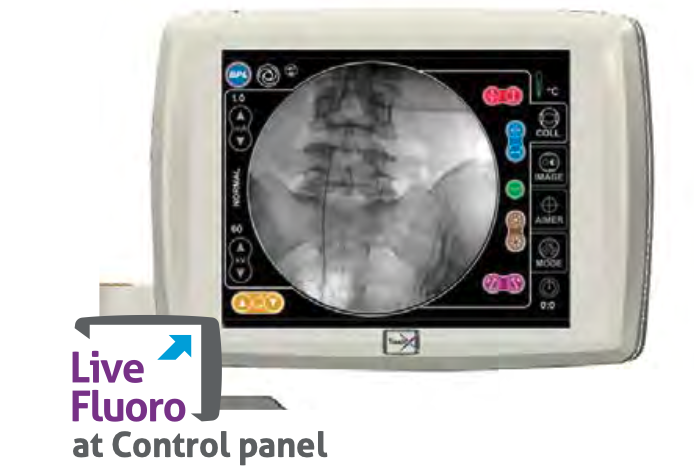

  • Live Fluoroscopy display on Control panel
  • Modular Workstation with dual foldable high-resolution monitors
  • Self-Diagnostics to minimise the downtime
  • Patient’s dose display (Real time / Cumulative)
  • Fully Counter-balanced “C” provides stability during intra-operative
    at Control panel examinations

BPL C-Ray Pro Plus

C-Ray Pro Plus

  • 110 KHz Ultra High Frequency, 3.5KW X-ray Generator for high quality images & reduced skin dose
  • KV range: 40kv-110kv
  • Stationary Anode X-ray Tube head with real time heat monitoring

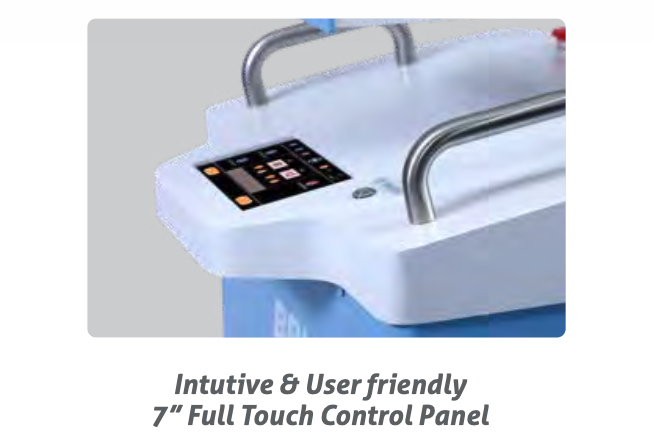

  • 7” Full Touch control panel which is intuitive and user friendly
  • Multiple operating Modes – Continuous / Snapshot/ Boost
    Fluoro & Radiography modes
  • Compact Workstation with 17’ dual High-Resolution LED
    monitors/19’ dual monochrome medical grid monitors*
  • Compact device provides perfect mobility with smaller footprint
  • Superior Ergonomic design for an efficient operation
  • Auto saving of images for hassle free operation
  • DICOM 3.0 send, CD/DVD data export*
